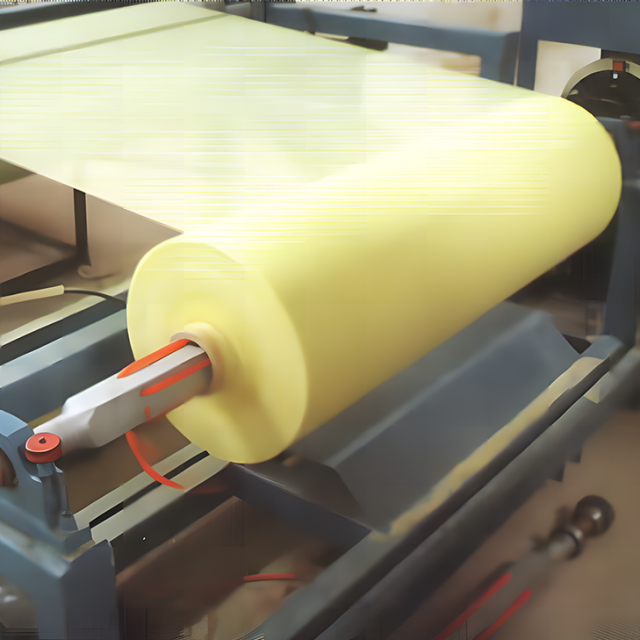

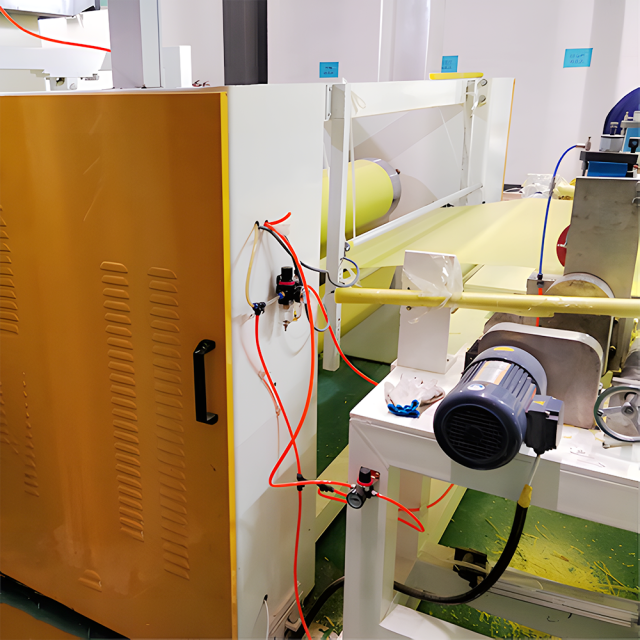

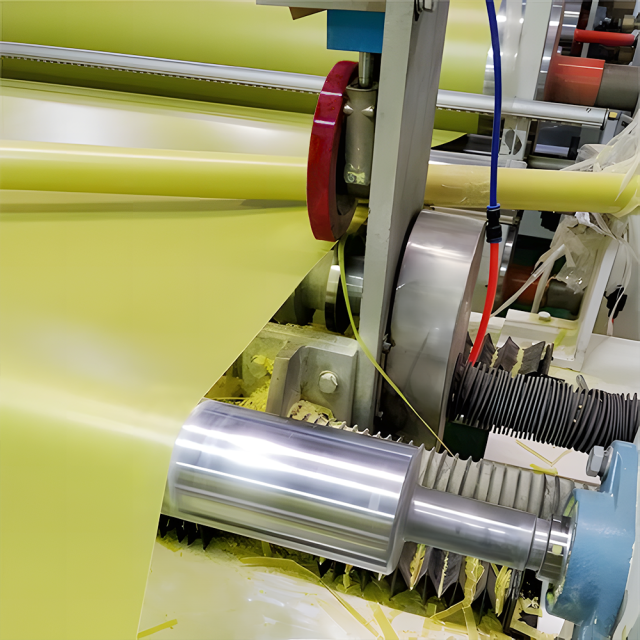

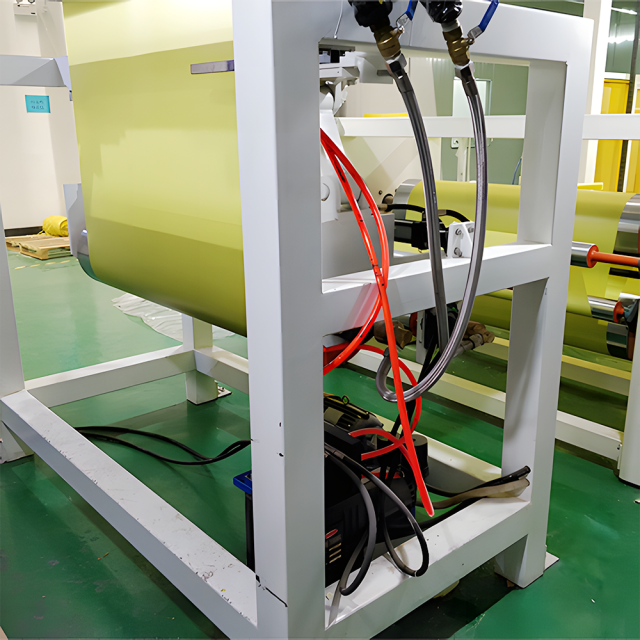

Fiber Glass Epoxy Verticle Impregnation Line for Prepreg, CCL, Copper Clad Laminates

No.010
Top impregnation line supplier in China, we provide fiber glass, fabric glass epoxy verticle impregnation line for prepreg, fiber glass epoxy vertical impregnation line for Copper clad laminates, vertical epoxy impregnation line for prepreg, pp
Description
Specification and Features About Vertical Impregnation Line

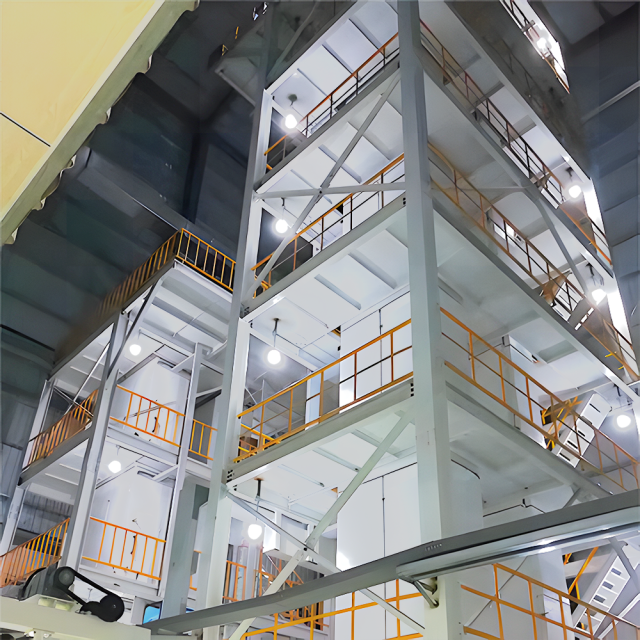

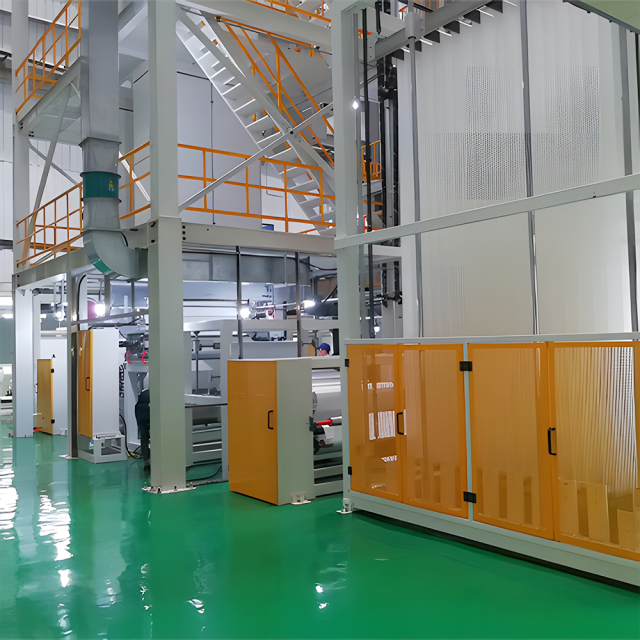

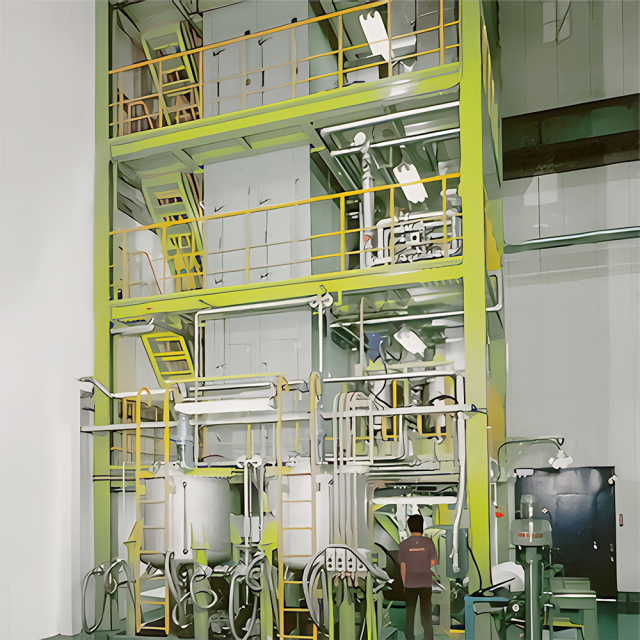

RY1500-LE-V VERTICAL PRE-PREG IMPREGNATION LINE

Application and Applicability
 1.Application

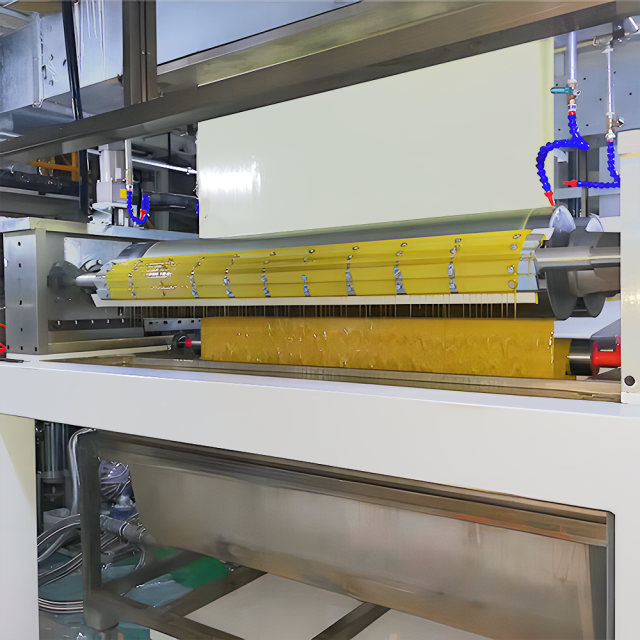

SX1500-LE-V VERTICAL PRE-PREG IMPREGNATION LINE, is used for glass fiber epoxy resin impregnation, dryer and stacking, mainly used for CCL, insulant panel and other related item production.
1.2 Applicability
   80~450gsm/cm2 900~1300mm glass fiber, glass fiber felt, kraft paper, cotton fiber
  1. Surrounding
    1. Corrosion free, soluble resin glue;
    2. Surrounding temperature -50~+400C;
    3. Relative humidity: ≤90% ( at 200C );

Chart Two, basic specification
2.1 General
Model SX1500-LE-V3
Raw Web Glass fiber, glass felt, Kraft paper
Thickness of Web 1080, 2116, 7628 & glass felt
Width of Web 900~1300mm
Glue Soluble Glue, Soluble Epoxy Glue
Solid Resin Content of Pre-Preg. 35~65%
Solid Content of Glue 56~70%
Solvent Acetone DMF mixed solvent
T/W ±5g
G/T ±8s
Operating width 1500mm
Mechanical Speed 0~15m/min
Operating Speed 2~10m/min
Heating Method Infrared heating reflection and hot air auxiliary
Tension Control ±5
Temperate Control ±5
Heating Chamber Temperature 1200~2500C

2.2 General Profile Data
Max. Diameter of Web Roll Ø 800mm
Max. Loading Weight 1000kg
Diameter of expanding roller Ø 76mm
Length of Chamber unit 3000mm
Web drying trip 18000mm
Chamber Drying Width 1600mm
Length Max.26000mm
Width Max.7000mm
Height Max.16500mm
Operating Side Left of web movement
Driven side Right of web movement

2.3 Drive & Power Supply
Power supply 380V AC, 50/60Hz, 3PH
Power of Control 220V AC, 50/60Hz, 1PH
Power of Consumption ~430kw
Heating Media Infrared Ceramic, inlet ≥2500C
Heating Consumption 300,000kcal/hour
Compressed Air 0.5~0.7Mpa
Compressed Air ~0.88M3/min
Cooling Water ~2M3/min
Cooling Water Pressure 0.2~0.4Mpa

2.4 Production Capacity Factors
Production capacity is subject to vertical impregnation line design, technical specification basically, also related with web weight, kinds of resin glue, glue formula, saturating properties of web, glue pick-up content, surrounding temperature, circulation air flow, skills of operator, etc.
