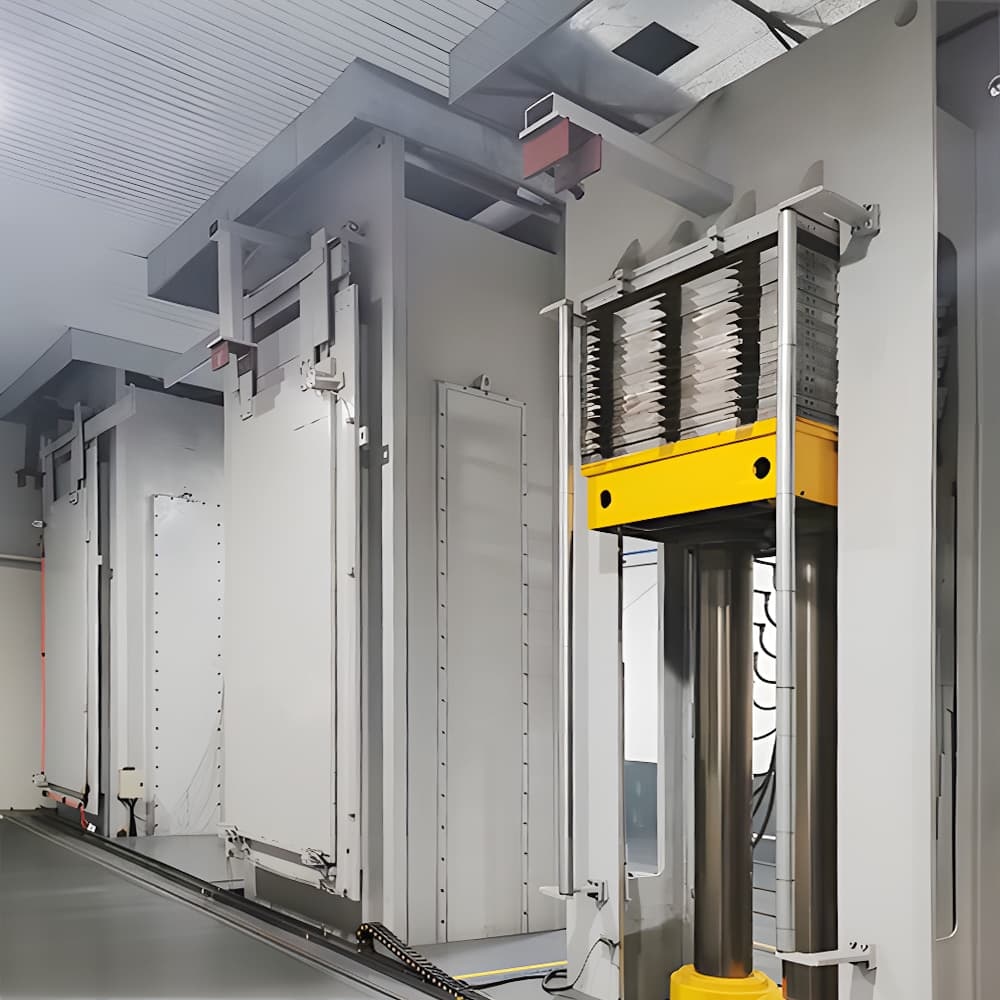

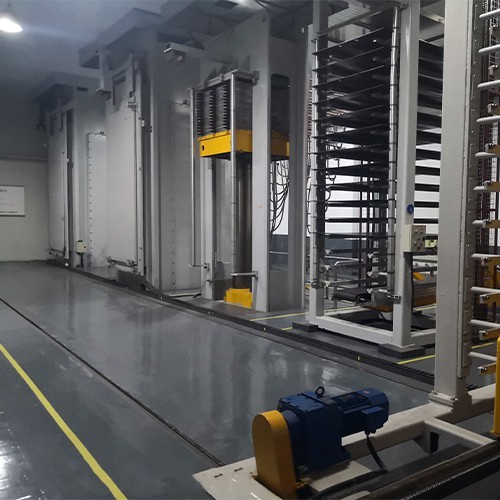

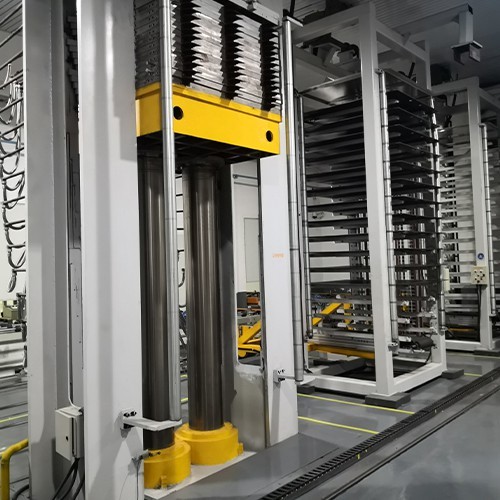

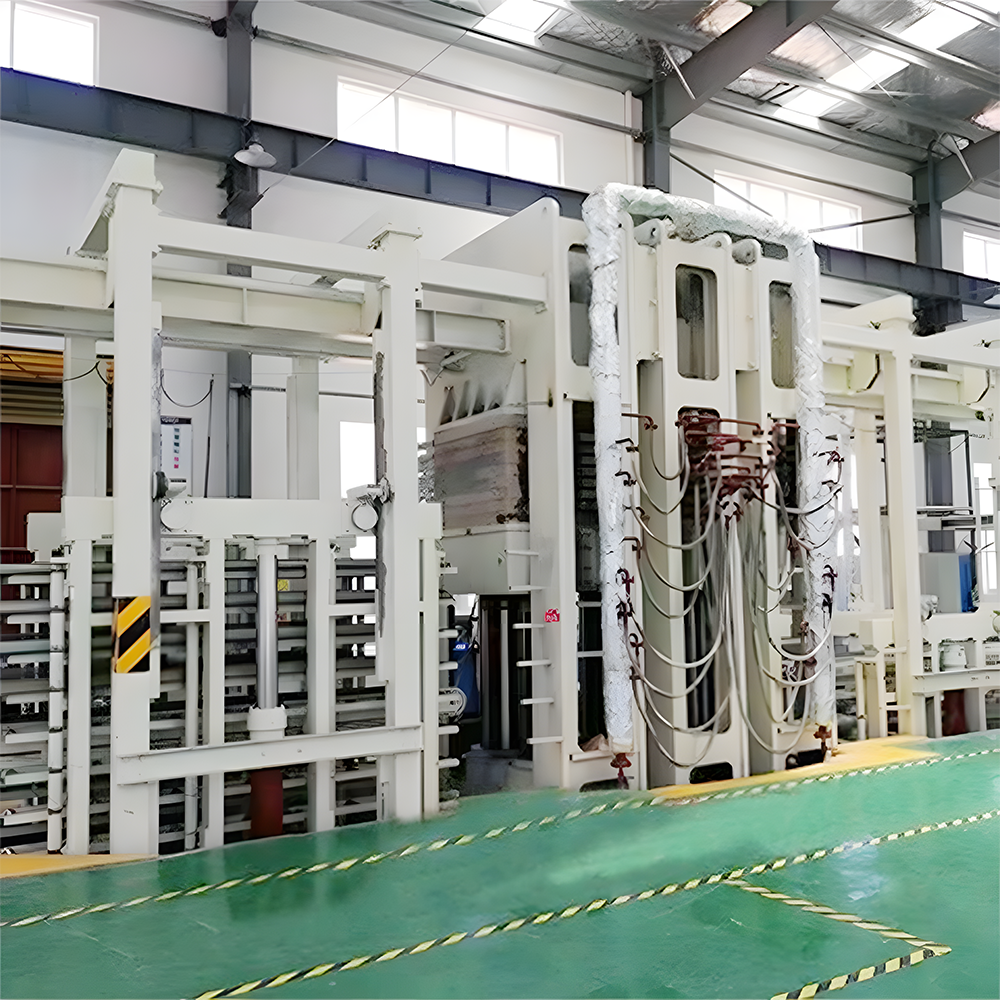

2500T 2Hot 1Cold CCL Vacuum Lamination Press

The typical configuration of a "Two Hot, One Cold" press system includes the following components:

1. Loading-Unloading Moving Car- This component facilitates the movement of materials in and out of the press machines.

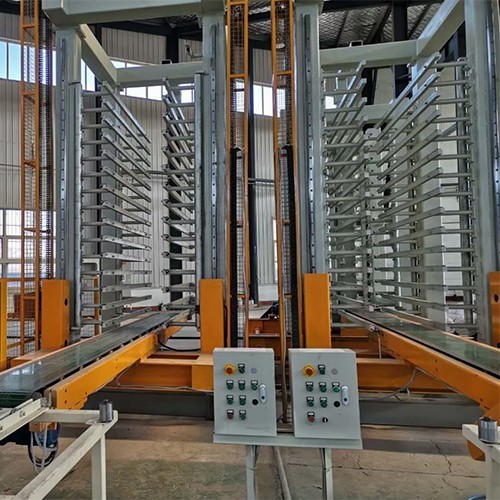

2. Loader Machine- Used for loading raw materials onto the press.
3. Hot Press Machines (No.1 and No. 2)- These machines are responsible for heating the CCL, with a vacuum system to avoid heated bubble generation.
4. Vacuum System- Maintains a controlled environment in the hot press, avoiding heated bubble generation.
5. Hydraulic Systems (No. 1 and No. 2)- Power the movement and pressing action of the hot presses.
6. Cold Press Machine- Used for cooling the CCL after the heating process, with its dedicated hydraulic system.
7. Conduction Oil System- Responsible for heating the hot press machines, ensuring consistent temperatures.
8. Cooling System- Maintains the cold press at optimal cooling temperatures to ensure rapid stabilization of the laminate.
9. Traversing Track- Allows for smooth movement of materials between the different stages of the pressing process.
10. Unloading Board Machine- Removes the finished laminate from the cold press machine.

Advantages of the "Two Hot, One Cold" Press Configuration

1. Improved Production Efficiency
One of the primary advantages of separating the heating and cooling processes is the significant improvement in production efficiency. By using two hot press machines, the heating process can continue uninterrupted, while the cold press handles cooling separately. This means there is no need to wait for a single machine to cool down after each cycle, resulting in faster overall production times.
2. Energy Savings
The hot press machines in this configuration do not need to cool down after each cycle, which dramatically reduces heat energy loss. Since the hot press remains consistently at a high temperature, the energy required to maintain this heat is minimal compared to traditional methods, where the machine must reheat after each cycle.
3. Lower Investment Costs
Compared to using three machines that combine both heating and cooling, the "Two Hot, One Cold" configuration requires less investment. Compared to using three machines that combine both heating and cooling, the "Two Hot, One Cold" configuration requires less investment. Cold press machines are simpler to manufacture and have lower technical requirements than bot press machines. As a result, the overall cost of the equipment is lower, making this setup more economical for large-scale production
4. Efficient Use of Space
In a large-scale production facility, space is always a valuable asset. The "Two Hot, One Cold" configuration takes up less space than a setup that uses individual machines for both heating and cooling. This not only reduces the footprint of the equipment but also simplifies the layout of the production line, making automation easier to implement
5. Higher Equipment Utilization Rates
The separation of heating and cooling processes allows each press machine to be used more efficiently. The hot press machines can continue working without interruption, while the cold press handles the cooling, resulting in maximizing output without requiring additional resources.

Key Requirements for the "Two Hot, One Cold" Press Configuration

While the "Two Hot, One Cold" configuration offers many advantages, it also comes with specific operational requirements that must be met to ensure optimal performance.
1. Heating and Cooling Time Ratio
One of the most important aspects of this configuration is the ratio of heating time to cooling time. The heating time must be at least twice as long as the cooling time to ensure that the laminate bonds properly during the pressing process. This ratio is crucial for maintaining product quality and ensuring the structural integrity of the CCL
2. Consistent Equipment Specifications
All three machines in the "Two Hot, One Cold” configuration must have consistent operating levels, layer spacing, and number of layers. This ensures that the laminate is processed evenly throughout each stage, preventing defects and ensuring a uniform final product.
3. Proper Synchronization of Machines
For the system to function optimally, the three press machines must be perfectly synchronized. This involves coordinating the timing of the heating, holding, and cooling stages to ensure that each machine is working at maximum efficiency without causing bottlenecks in the production process.
